NTC Thermistor Sensor For Fire-Fighting Equipment 20.92kΩ 4200k 2%

Name: NTC Thermistor Sensor For FireFighting Equipment 2092kΩ 4200k 2
Brand: Jingpu Brand
Price: 0.1 USD

Brand Name : Jingpu Brand

Model Number : MF5A-1

Certification : CE,ROHS,ISO

Place of Origin : Hefei, Anhui, China

MOQ : 500

Price : USD 0.1-5 /PCS

Payment Terms : L/C, T/T, Western Union

Supply Ability : 200 Million per Year

Delivery Time : 2-7days

Packaging Details : Carton packing

Way to install : Inserting

Sensing way : Resistence

Output signal type : Analog Type

Material : Epoxy and Metal

Measuring the dielectric : Temperature

IP code : IP64

Transport package : Carton Packing

Appearance : Black

Warranty : 12~24 Months

After-sale service : Quality Assurance

Customization : Yes

Operating Temperature : /

Resistence Value : Custom

B Value : Custom

Shipping : Shipping, Air, or Express

Wire : PVC/XPLE/FEP/PTFE

Contact Now

NTC Thermistor Sensor for Fire-fighting Equipment 20.92kΩ 4200k 2%

Brief Instruction:

The NTC thermistor is made of NTC element, epoxy resin and bare wire. It’s manufactured from Hefei Jingpu Sensor Technology Co.,Ltd.

Features:

Small Epoxy bead

Good stability, fast response

Operating temperature range: -40℃~125℃

R62℃=20.92kΩ±3%,B25/50=4200k±2%

Application:

Fire-fighting equipment

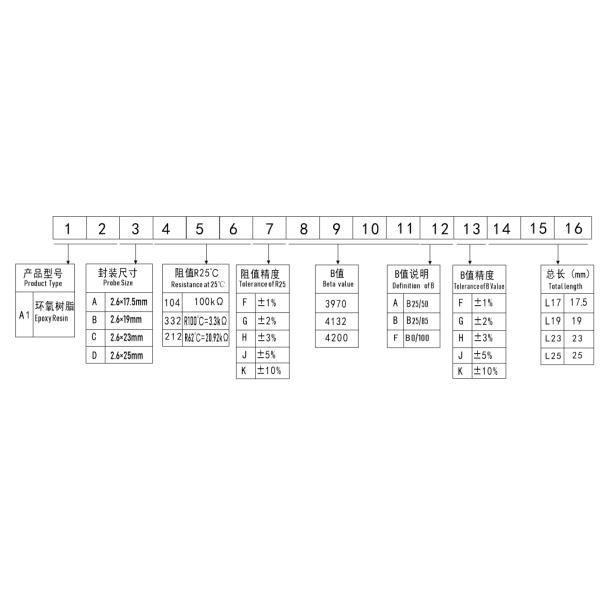

Part Number Code:

NTC Thermistor Sensor For Fire-Fighting Equipment 20.92kΩ 4200k 2%

Structure and Dimensions:

NTC Thermistor Sensor For Fire-Fighting Equipment 20.92kΩ 4200k 2%

Electrical specification:

Product Specification	Rec. at T℃(KΩ)	Beta value	(In air) Pmax(mW)	δ (mW/℃)	thermal time constant τ(sec.)	Operating Temperature Range TL-TH(℃)	Total length L(mm)
A1B212□4200A□□□□L19	R62=20.92	B25/85=4200	Approx.3.5	Approx.0.7	Max.5.0	-40~125	19
A1A104□4132B□□□□L17	100	B25/85=4132					17
A1C104□4132B□□□□L23	100	B25/85=4132					23
A1B332□3970F□□□□L25	R100=3.3	B25/50=3970					26

Use stainless steel probe
Using internal sensors, using high-temperature electrical tape,
Avoid short circuit, product quality is more stable.
High precision measurement
Use internal sensors and use high-temperature electrical tape.
Stable performance
It performs well in high and low temperature environment and humid and hot environment
Support for custom
Our company can customize a variety of products to meet customer needs, details please email consultation!
